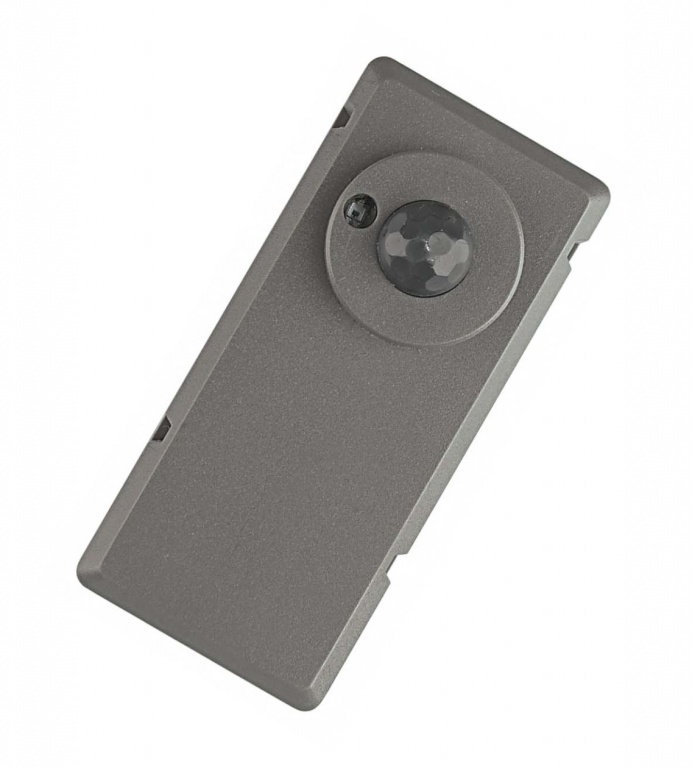

Touch DIM LS/PD LI Movement Detectors

Product code: 57058 | Osram code: 4008321023025

Price € 130,80 incl. VAT
€ 130,80 ex. VAT

System wattage 0.50 W
Length 63.0 mm
Width 29.0 mm
Height 21.0 mm
Product weight 24.00 g
Dimming interface Touch DIM
Type of installation Luminaire integration
Number of control outputs 1
Detection angle 80 °
Maximum installation height 4 m
Operating range, light sensor 10350 lx
Type of protection IP20
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

Touch DIM LS/PD LI

Karta produktu PDF

Product code: 57058 | Osram code: 4008321023025

€ 130,80 € 130,80 ex. VAT

Description / FAQ Warranty

Electrical data
System wattage	0.50 W

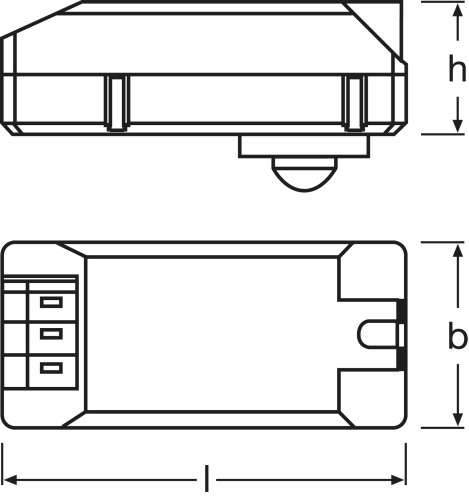

Dimensions & weight
Length	63.0 mm
Width	29.0 mm
Height	21.0 mm
Product weight	24.00 g
Capabilities
Dimming interface	Touch DIM
Type of installation	Luminaire integration
Number of control outputs	1
Detection angle	80 °
Maximum installation height	4 m
Operating range, light sensor	10350 lx
Certificates & standards
Type of protection	IP20
Colors & materials
Product color	Anthracite
Temperatures
Ambient temperature range	0+50 °C

Product benefits

A setpoint for daylight-dependent control can be stored by double clicking
Operated via standard switches

Areas of application

Single luminaires in office areas

Product features

Touch DIM light and presence sensor
Can also be operated purely as a presence sensor
Maximum signal line length: 10 m
Maximum power input: 0.5 W
Delay time: 15 min

Equipment / Accessories

Suitable for up to 4 QTi DALI ECG or 4 HTi DALI transformers or 4 OTi DALI LED ECG
