Microwave movement sensor ROLF JQ-O Movement Detectors

Product code: 62361 | Kanlux code: 8821

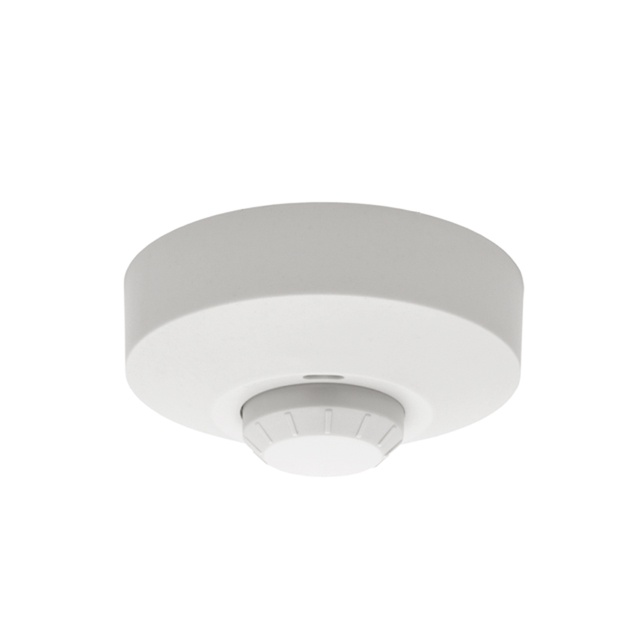

Microwave movement sensor Kanlux ROLF JQ-O

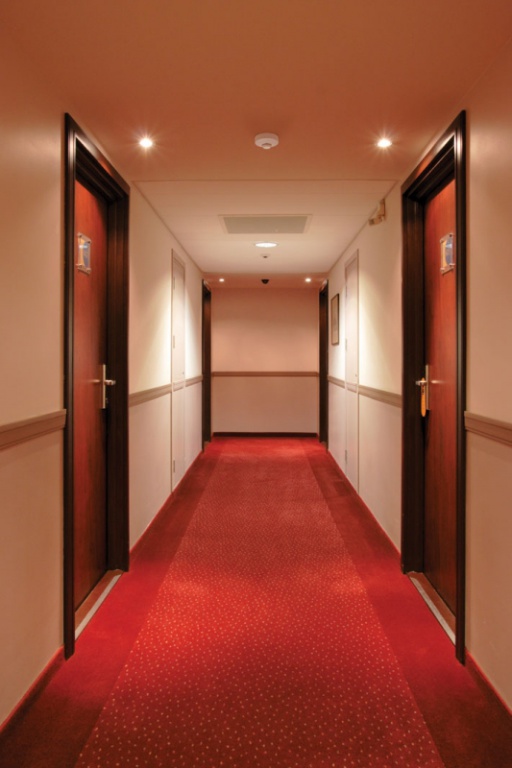

Microwave movement sensor Kanlux ROLF JQ-O - arrangement

Microwave movement sensor Kanlux ROLF JQ-O - technical drawing

Price € 9,16 incl. VAT
€ 9,16 ex. VAT

Fullfillment time

1-2 dni

Dostępność w magazynie
Colour white
220-240V supply
Rated frequency 50/60Hz
II protection class
conformity with European standards
applicable indoors
protection against solid objects over 12mm
permitted mounting on flamable regular surface
weight 120g
clamp 0,5 x 1,5 mm2
wattage max 1200VA
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

1 variant available

Microwave movement sensor ROLF JQ-O

Karta produktu PDF

Product code: 62361 | Kanlux code: 8821 Fullfillment time 1-2 dni Dostępność: w magazynie Colour: white Weight: 0,12

€ 9,16 € 9,16 ex. VAT

Description / FAQ Warranty

Dostępność	w magazynie
Colour	white
Kanlux Parameters
	220-240V supply
	Rated frequency 50/60Hz
	II protection class
	conformity with European standards
	applicable indoors
	protection against solid objects over 12mm
	permitted mounting on flamable regular surface
	weight 120g
	clamp 0,5 x 1,5 mm2
	wattage max 1200VA

casing: plastic
colour: white
maximum horizontal operation angle for movement sensor is 360°
maximum movement detection range is 15m
maximum verical operational angle for movement sensor is 160°
movement detection: 0.3…3m/s (1…10km/h)
possibility of fitting lighting time control from 6s to 12min
sensitivity adjustment range of 2…2000lx
setting ambient illumination level at which the equipment operates
