Microwave movement sensor ROLF MINI JQ-L Movement Detectors

Product code: 62362 | Kanlux code: 8822

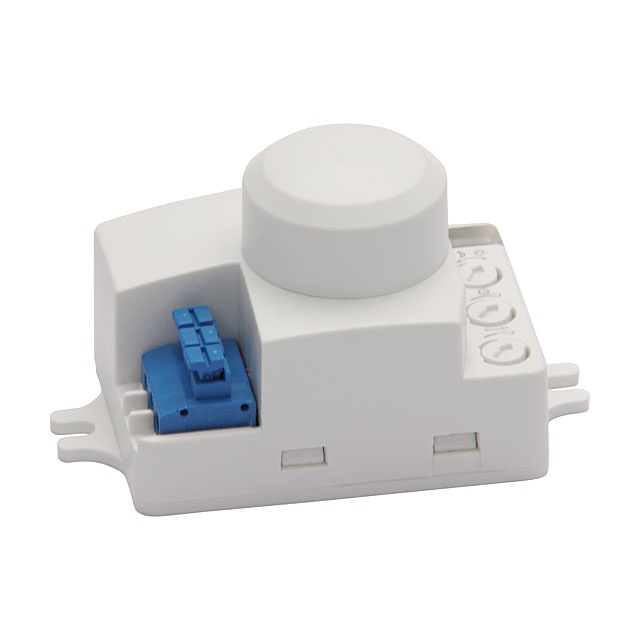

Microwave movement sensor Kanlux ROLF MINI JQ-L

Microwave movement sensor Kanlux ROLF MINI JQ-L - technical drawing

Price € 7,84 incl. VAT
€ 7,84 ex. VAT

Fullfillment time

1-2 dni

Dostępność w magazynie
Colour white
220-240V supply
Rated frequency 50/60Hz
II protection class
conformity with European standards
applicable indoors
protection against solid objects over 12mm
permitted mounting on flamable regular surface
weight 50g
spring block 1x2,5 mm2
wattage max 1200VA
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

1 variant available

Microwave movement sensor ROLF MINI JQ-L

Karta produktu PDF

Product code: 62362 | Kanlux code: 8822 Fullfillment time 1-2 dni Dostępność: w magazynie Colour: white Weight: 0,05

€ 7,84 € 7,84 ex. VAT

Description / FAQ Bought together Warranty

Bought together

Hermetic wall & ceiling light luminaire MARC DL-60

1 variant

€ 12,50

Dostępność	w magazynie
Colour	white
Kanlux Parameters
	220-240V supply
	Rated frequency 50/60Hz
	II protection class
	conformity with European standards
	applicable indoors
	protection against solid objects over 12mm
	permitted mounting on flamable regular surface
	weight 50g
	spring block 1x2,5 mm2
	wattage max 1200VA
	wattage min 0VA

casing: plastic
colour: white
maximum horizontal operation angle for movement sensor is 360°
maximum movement detection range is 8m
maximum verical operational angle for movement sensor is 140°
movement detection: 0.3…3m/s (1…10km/h)
possibility of fitting lighting time control from 10s to 30min
sensitivity adjustment range of 2…2000lx
setting ambient illumination level at which the equipment operates
