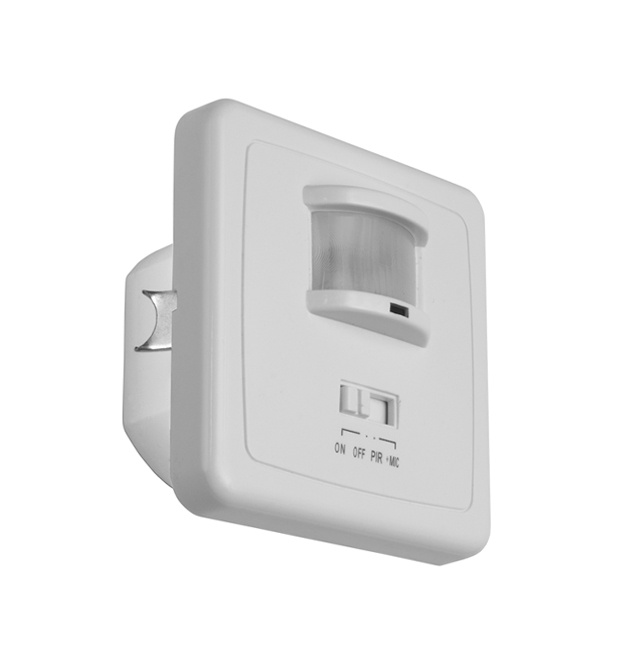

PIR movement sensor MARID JQ-L Movement Detectors

Product code: 62380 | Kanlux code: 8910

PIR movement sensor Kanlux MARID JQ-L - technical drawing

Price € 6,74 incl. VAT
€ 6,74 ex. VAT

Fullfillment time

1-2 dni

Dostępność w magazynie
Power min 40VA / max 500VA
Colour white
220-240V supply
Rated frequency 50/60Hz
II protection class
conformity with European standards
applicable indoors
protection against solid objects over 12mm
for building in vertical surface or from the bottom of solid surface
permitted mounting on flamable regular surface
with switch
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

1 variant available

PIR movement sensor MARID JQ-L

Karta produktu PDF

Product code: 62380 | Kanlux code: 8910 Fullfillment time 1-2 dni Dostępność: w magazynie Power: min 40VA / max 500VA Colour: white

€ 6,74 € 6,74 ex. VAT

Description / FAQ Warranty

Dostępność	w magazynie
Power	min 40VA / max 500VA
Colour	white
Kanlux Parameters
	220-240V supply
	Rated frequency 50/60Hz
	II protection class
	conformity with European standards
	applicable indoors
	protection against solid objects over 12mm
	for building in vertical surface or from the bottom of solid surface
	permitted mounting on flamable regular surface
	with switch
	clamp 3 x 0,75 mm2

casing: plastic
colour: white
intended only for resistive loads
maximum horizontal operation angle for movement sensor is 130°
maximum movement detection range is 12m
maximum verical operational angle for movement sensor is 25°
movement detection: 0.3…3m/s (1…10km/h)
possibility of fitting lighting time control from 5s to 7min
possibity to run sensor with sound signal in the range 30-90dB
sensitivity adjustment range of 3…1000lx
setting ambient illumination level at which the equipment operates
