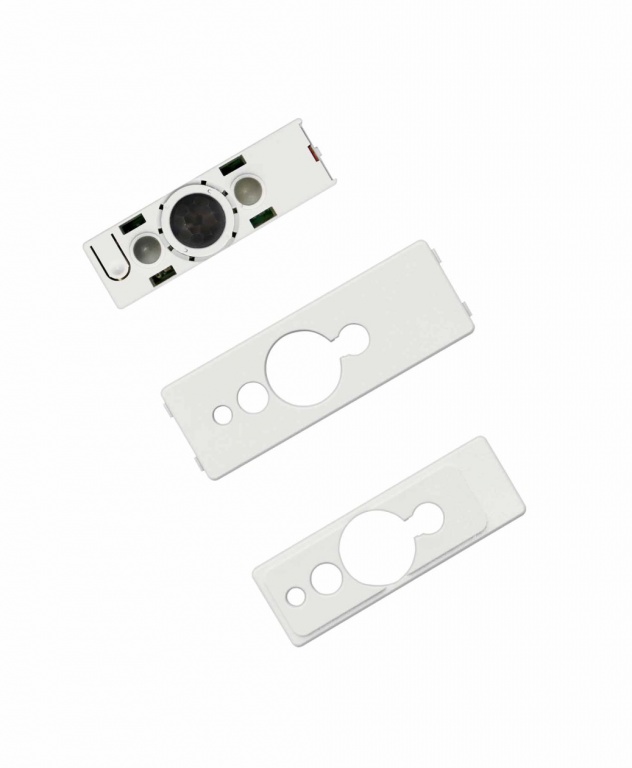

DALIeco LS/PD LI NP Movement Detectors

Product code: 57079 | Osram code: 4052899914636

Price € 80,06 incl. VAT
€ 80,06 ex. VAT

Length 48.0 mm
Width 15.0 mm
Height 17.0 mm
Product weight 33.00 g
Operating range, light sensor 20800 lx
Type of protection IP20
Ambient temperature range 0+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

DALIeco LS/PD LI NP

Karta produktu PDF

Product code: 57079 | Osram code: 4052899914636

€ 80,06 € 80,06 ex. VAT

Description / FAQ Warranty

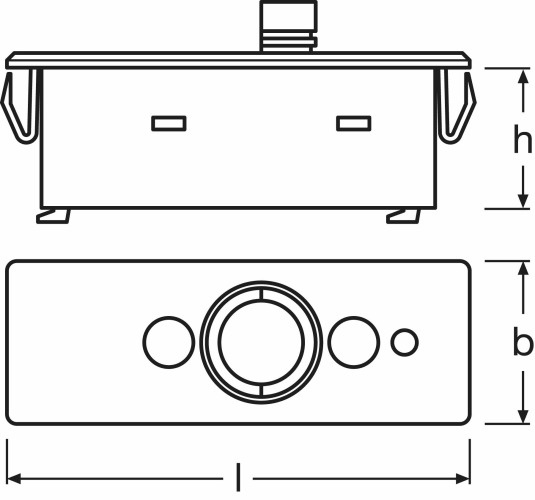

Dimensions & weight
Length	48.0 mm
Width	15.0 mm
Height	17.0 mm
Product weight	33.00 g
Capabilities
Operating range, light sensor	20800 lx
Certificates & standards
Type of protection	IP20
Temperatures
Ambient temperature range	0+50 °C

Product benefits

VDE/VDE EMC certified system
V(λ) corrected light sensor element
Individual activation/deactivation of light and presence sensor via remote control
Presence detection angle adjustable between 40…90° via integrated shutters

Areas of application

Corridors
Office luminaires
Classrooms

Product features

Light and presence sensor
Presence detection via passive IR element
Function indicator with two-color LED
Integrated infrared remote control receiver
Halogen free polycarbonate plastic housing
Connection via polarity reversal protected 4p4c socket (RJ10)
