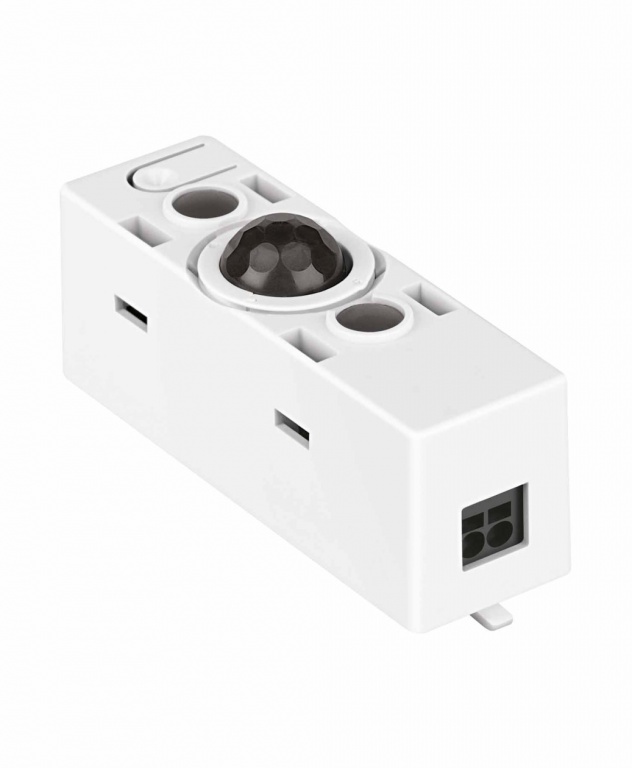

DALI LS/PD LI Movement Detectors

Product code: 57078 | Osram code: 4052899043954

Price € 115,85 incl. VAT
€ 115,85 ex. VAT

Length 48.0 mm
Width 15.0 mm
Height 17.0 mm
Product weight 10.00 g
Type of installation Ceiling integration/Luminaire integration
Detection angle 80 °
Detection area 6 m²
Maximum installation height 5 m
Operating range, light sensor 20800 lx
Type of protection IP20
Product color Grey
Ambient temperature range 0+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

DALI LS/PD LI

Karta produktu PDF

Product code: 57078 | Osram code: 4052899043954

€ 115,85 € 115,85 ex. VAT

Description / FAQ Warranty

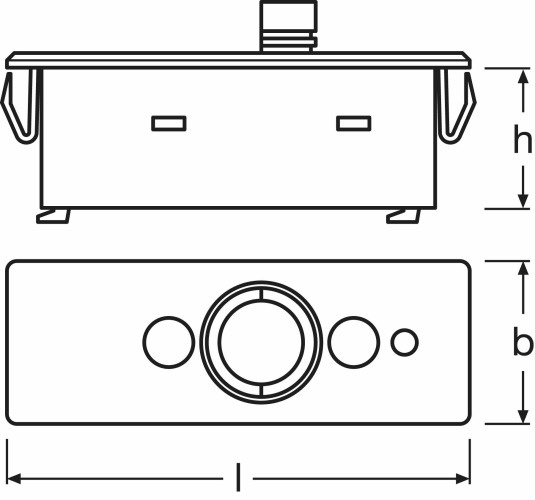

Dimensions & weight
Length	48.0 mm
Width	15.0 mm
Height	17.0 mm
Product weight	10.00 g
Capabilities
Type of installation	Ceiling integration/Luminaire integration
Detection angle	80 °
Detection area	6 m²
Maximum installation height	5 m
Operating range, light sensor	20800 lx
Certificates & standards
Type of protection	IP20
Colors & materials
Product color	Grey
Temperatures
Ambient temperature range	0+50 °C

Product benefits

Small housing design
Presence detection angle adjustable between 40…90° via integrated shutters
Can be addressed via DALI
Compact housing for luminaire installation
Daylight-dependent control with automatic shutdown in aquate daylight
Slim housing design and flexible mounting concept
Power supply from DALI
DALI based light management system integrable into building management systems

Areas of application

Installation in industry and office luminaires
Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Classrooms
Conference rooms
Corridors
Individual offices
Suspended luminaires
Suitable for indoor applications

Product features

Direct connection to DALI
Light and presence sensor for luminaire installation
Presence detection via passive IR element
Light sensor working range: 20…800 lx (measured at sensor)
Function indicator with two-color LED
Flame-resistant, halogen free polycarbonate plastic housing
Mounting height: 2…5 m

Equipment / Accessories

Suitable for DALI Professional and DALIeco Control unit
Attachable mounting frame for luminaire mounting from inside and outside
