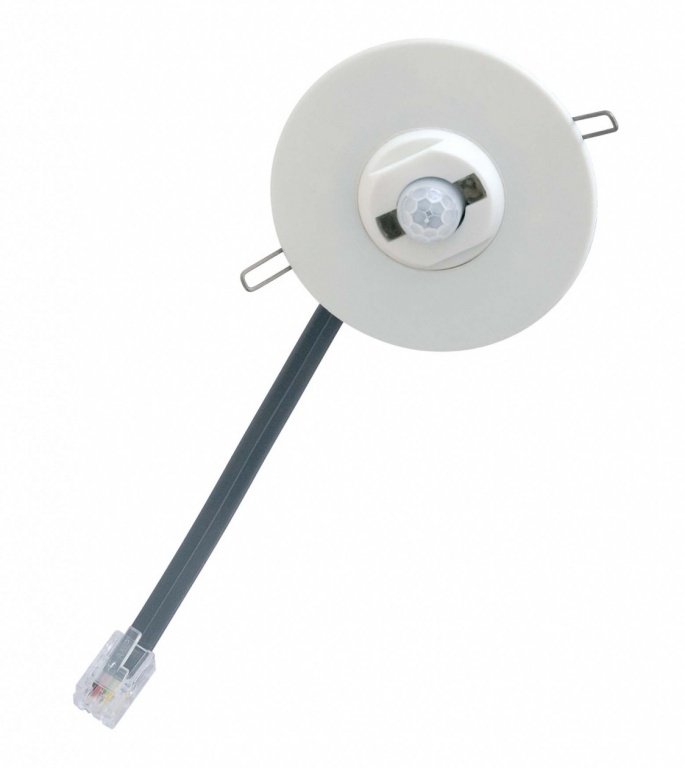

LS/PD MULTI 3 CI Movement Detectors

Product code: 56948 | Osram code: 4008321916648

Price € 168,76 incl. VAT
€ 168,76 ex. VAT

Diameter 50.0 mm
Length 50.0 mm
Width 50.0 mm
Height 25.0 mm
Product weight 30.00 g
Type of installation On-top ceiling mounting/Ceiling integration
Detection angle 80 °
Detection area 6 m²
Maximum installation height 4 m
Operating range, light sensor 20600 lx
Product color White
Ambient temperature range 0+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

LS/PD MULTI 3 CI

Karta produktu PDF

Product code: 56948 | Osram code: 4008321916648

€ 168,76 € 168,76 ex. VAT

Description / FAQ Warranty

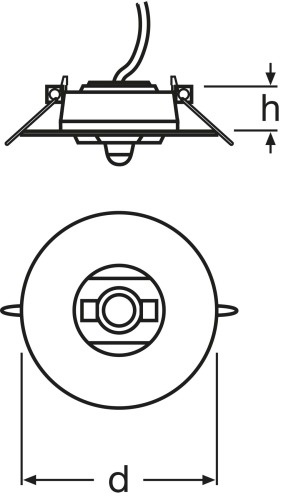

Dimensions & weight
Diameter	50.0 mm
Length	50.0 mm
Width	50.0 mm
Height	25.0 mm
Product weight	30.00 g
Capabilities
Type of installation	On-top ceiling mounting/Ceiling integration
Detection angle	80 °
Detection area	6 m²
Maximum installation height	4 m
Operating range, light sensor	20600 lx
Colors & materials
Product color	White
Temperatures
Ambient temperature range	0+50 °C

Product benefits

Particularly small construction

Areas of application

Offices
Corridors
Classrooms
Training rooms
Stairways
Sanitary areas

Product features

Ceiling installation sensor with moveable sensor head
Connection via four-pole screw terminal or modular 4c4p-connector

Equipment / Accessories

Surface mounting in connection with SENSOR KIT
Suitable for MULTIeco, DIM MULTIeco, DALI MULTIeco control unit
Suitable for DALI Professional Sensor Coupler
