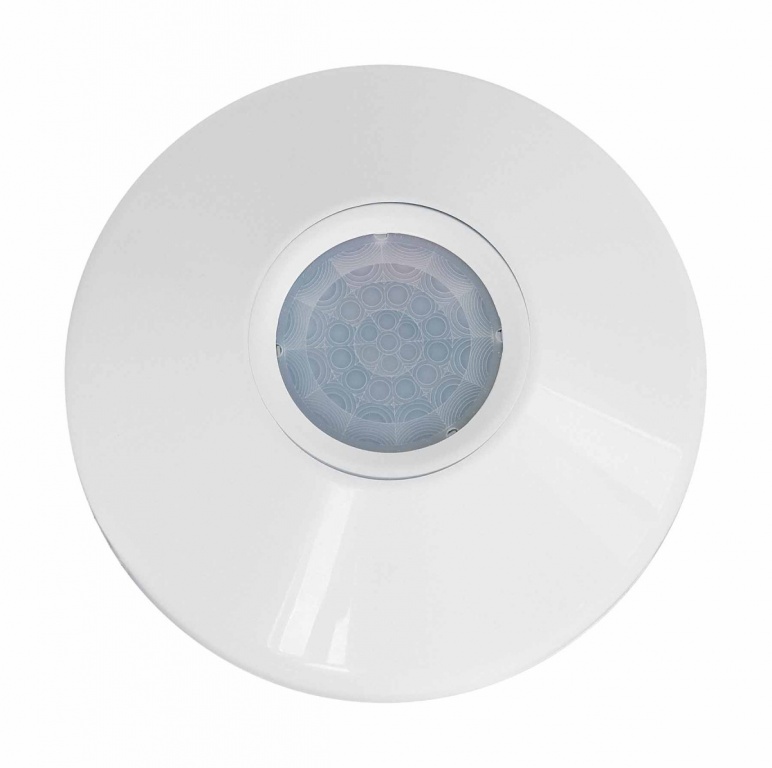

Detector HIGH BAY Movement Detectors

Product code: 56882 | Osram code: 4008321410078

Price € 270,57 incl. VAT
€ 270,57 ex. VAT

Nominal voltage 120277 V
Mains frequency 5060 Hz
System wattage 0.60 W
Diameter 115.6 mm
Length 115.6 mm
Width 115.6 mm
Height 39.4 mm
Product weight 135.00 g
Type of installation On-top ceiling mounting
Detection angle 100 °
Detection area 18 m²
Maximum installation height 13 m
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HIGH BAY

Karta produktu PDF

Product code: 56882 | Osram code: 4008321410078

€ 270,57 € 270,57 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	120277 V
Mains frequency	5060 Hz
System wattage	0.60 W

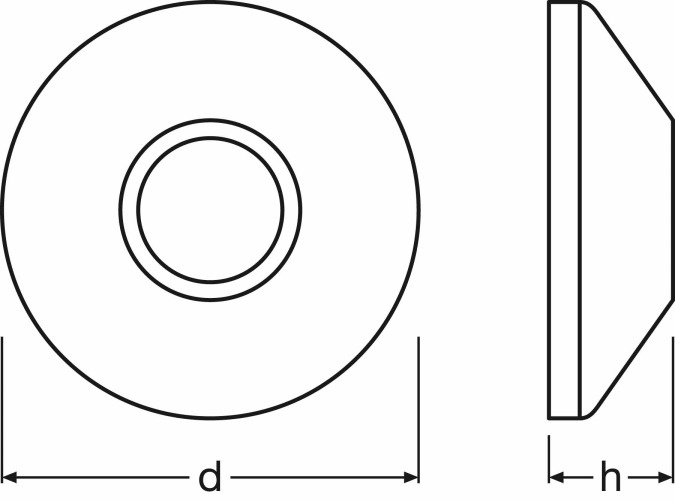

Dimensions & weight
Diameter	115.6 mm
Length	115.6 mm
Width	115.6 mm
Height	39.4 mm
Product weight	135.00 g
Capabilities
Type of installation	On-top ceiling mounting
Detection angle	100 °
Detection area	18 m²
Maximum installation height	13 m
Load contact	5 A
Certificates & standards
Type of protection	IP20
Colors & materials
Product color	White
Temperatures
Ambient temperature range	-10+70 °C

Product benefits

Energy savings up to 35 % (compared to manual switching)

Areas of application

Great installation height
Industry
Production halls

Product features

Motion sensor with switching contact
3 to 10 m: detection of motion by people
3 to 13 m: detection of vehicle movement (e.g. fork lift truck)
Adjustable switch-off delay: 30 s to 20 min
Maximum power consumption in stand-by mode: 0.25 W

Equipment / Accessories

Suitable for up to 15 electronic control gears
Installation by means of Mounting Adapter possible
