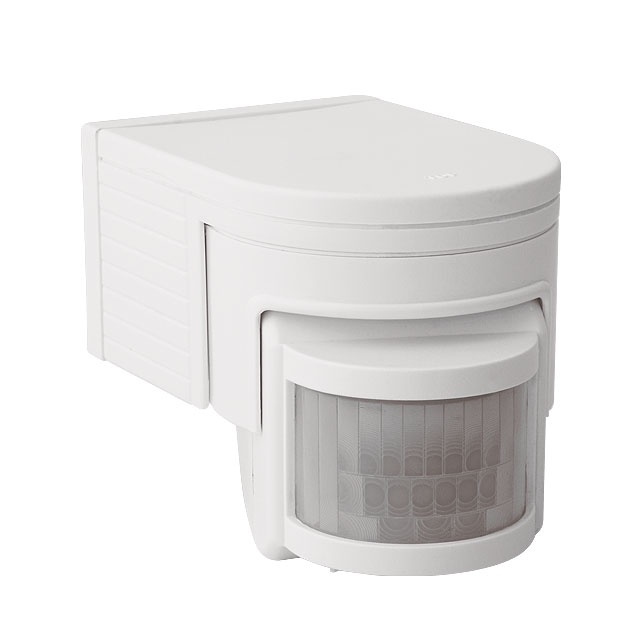

PIR movement sensor SLICK JQ-L-W Movement Detectors

Product code: 62304 | Kanlux code: 8390

PIR movement sensor Kanlux SLICK JQ-L-W - technical drawing

Price € 7,88 incl. VAT
€ 7,88 ex. VAT

Fullfillment time

1-2 dni

Dostępność w magazynie
Colour white
220-240V supply
Rated frequency 50/60Hz
protection against solid objects over 1mm and water drops
II protection class
conformity with European standards
applicable outdoors and indoors
connector: terminal block
vertical regulation range 45 degrees
permitted mounting on flamable regular surface
50 pcs per inner box
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Manual Catalogue page CE Conformity declaration

Score

rate product

Select your product from the 2

PIR movement sensor SLICK JQ-L-B

Karta produktu PDF

Product code: 62305 | Kanlux code: 8391 Fullfillment time 1-2 dni Dostępność: w magazynie Colour: black Weight: 0,26

€ 7,88 € 7,88 ex. VAT

PIR movement sensor SLICK JQ-L-W (currently dislayed)

Karta produktu PDF

Product code: 62304 | Kanlux code: 8390 Fullfillment time 1-2 dni Dostępność: w magazynie Colour: white Weight: 0,26

€ 7,88 € 7,88 ex. VAT

Description / FAQ Warranty

Dostępność	w magazynie
Colour	white
Kanlux Parameters
	220-240V supply
	Rated frequency 50/60Hz
	protection against solid objects over 1mm and water drops
	II protection class
	conformity with European standards
	applicable outdoors and indoors
	connector: terminal block
	vertical regulation range 45 degrees
	permitted mounting on flamable regular surface
	50 pcs per inner box
	horizontal regulation range 90 degrees
	wattage max 1200W
	weight 260g

casing: plastic
colour: black
maximum horizontal operation angle for movement sensor is 160°
maximum movement detection range is 12m
possible 8s to 10min range of fitting lighting time control
setting ambient illumination level at which the equipment operates
