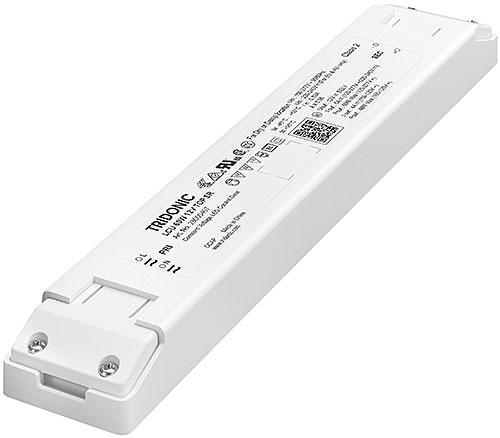

TALEXXdriver LCU 60W 12/24V IP20 EXC LED Drivers

Max. input power	74 W
Pack­ag­ing, carton	20 pc(s).
Pack­ag­ing, pallet	1,500 pc(s).
Weight per pc.	0.28 kg
Max. output voltage	25.2 V
Max. casing temperature tc	85 °C
Output current range	0.2 – 2.5 A
Output voltage	24 V
Tridonic - parametry
	110
	CE
	CLASS2
	EL
	ENEC
	IP20
	Independent gear
	MM
	RCM
	RoHs
	SC2 - Protection Class 2
	SELV
	Short Circuit Proof
	UL
	cCSAus
AC voltage range	90 – 305 V
Rated supply voltage	100 – 277 V
DC voltage range	176 – 288 V
Mains frequency	0 / 50 / 60 Hz
λ (at 230 V, 50 Hz, full load)	0.95
Mains surge capability (between L - N)	1 kV
Mains surge capability (between L/N - PE)	1 kV

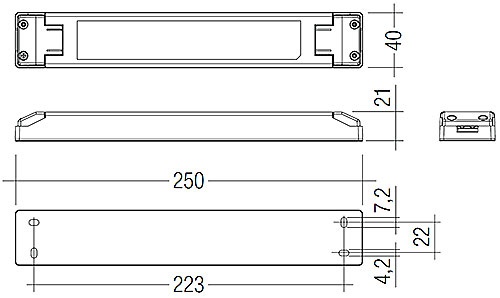

Dimensions L x W x H	250 x 40 x 21 mm
Ambient temperature ta	-25 ... +60 °C
Hold on time at power failure (output)	10 ms
Storage temperature ts	-40 ... +85 °C
Output power range	4.8 – 60 W
Efficiency (at 230 V, 50 Hz, full load)	> 85 %
Turn off time (output)	≤ 1 s
Turn on time (output)	≤ 0.5 s
Hole spacing D	223 mm
Surge voltage at output side (against PE)	< 500 V
Rated current (at 230 V, 50 Hz, full load)	0.32 A
Output voltage tolerance 12 V	-0 / +10 %
Output voltage tolerance 24 V	-0 / +5 %
Output power (ta > 50 °C)	42 W
Output power (ta ≤ 50 °C)	60 W
Ambient temperature ta (at life-time 50,000 h)(1)	-25 ... +45 °C

• Constant voltage LED Driver
• Universal input voltage range
• Constant output voltage
• Push terminals for simple wiring
• Nominal life-time up to 50,000 h (at ta 45 °C with a failure rate ≤ 0.2 % per 1,000 h)
• 5-year guarantee
• Suitable for emergency escape lighting systems acc. to EN 50172
• Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2

Properties

• Small design
• High efficiency
• Low power loss
• Overtemperature and overload protection
• Short-circuit shutdown feature with automatic restart
• Protection class II, SELV
• Type of protection IP20
• Plastic casing white
