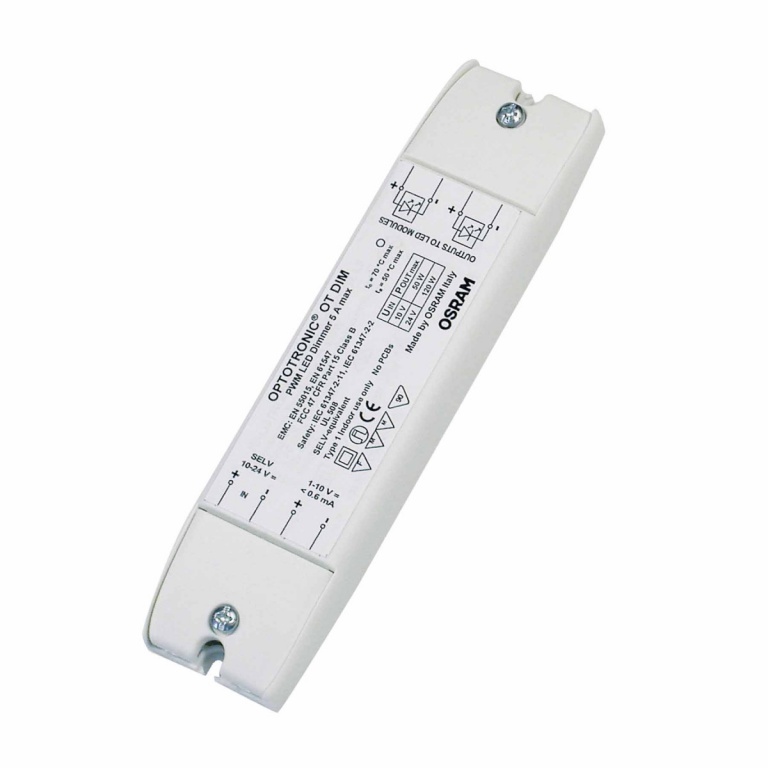

CV Dimmers with 1-10V LED Drivers

Product code: 56427 | Osram code: 4050300943459

Price € 83,38 incl. VAT
€ 83,38 ex. VAT

Nominal voltage 1024 V
Nominal output power 120 W
Input voltage AC 10.524 V
Mains frequency 0 Hz
Nominal output voltage 10.524 V
Device power loss 4.0 W
ECG efficiency 96 %
Galvanic isolation primary/secondary 3.75 kV
Length 172.0 mm
Width 42.0 mm
Height 20.0 mm
Mounting hole spacing, length 164.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

OT DIM

Karta produktu PDF

Product code: 56427 | Osram code: 4050300943459

€ 83,38 € 83,38 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	1024 V
Nominal output power	120 W
Input voltage AC	10.524 V
Mains frequency	0 Hz
Nominal output voltage	10.524 V
Device power loss	4.0 W
ECG efficiency	96 %
Galvanic isolation primary/secondary	3.75 kV

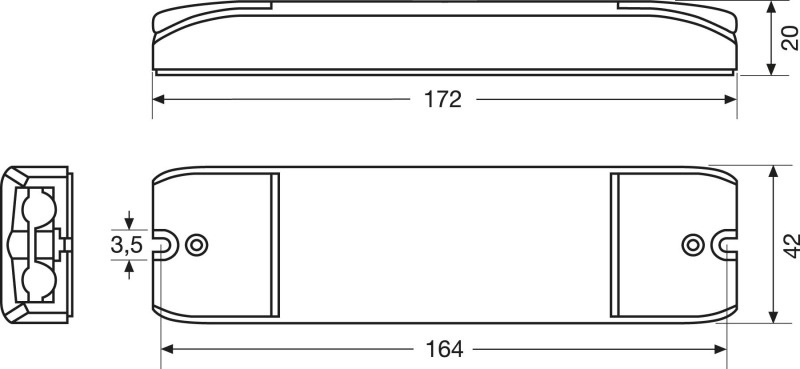

Dimensions & weight
Length	172.0 mm
Width	42.0 mm
Height	20.0 mm
Mounting hole spacing, length	164.0 mm
Cable cross-section, input side	0.51.5 mm²
Product weight	81.00 g
Cable cross-section, output side	0.51.5 mm²
Wire preparation length, input side	10 mm
Lifespan
ECG lifetime	50000 h
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	II
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	-
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Dimming range	0100 %
Certificates & standards
Approval marks approval	CE / UR / VDE / VDE-EMC
Standards	acc. to EN 55015/acc. to EN 61547/acc. to EN 61046/acc. to IEC 61347-2-2/acc. to UL 508
Type of protection	IP20
Colors & materials
Casing material	Plastic
Temperatures
Ambient temperature range	-20+50 °C
Maximum temperature at tc test point	70 °C
Temperature range at storage	-2585 °C
Max.housing temperature in case of fault	100 °C

Product benefits

Safety requirement due to overload, overtemperature, short-circuit protection

Areas of application

Suitable for indoor SELV installations

Product features

Intelligent analog dimmer (1…10 V) with constant output voltage
Up to 3 output channels
Dimming range: 0.1…100 %
Cable clamp housing for independent mounting
Device fits also for special applications where dimming below 1 % is required
