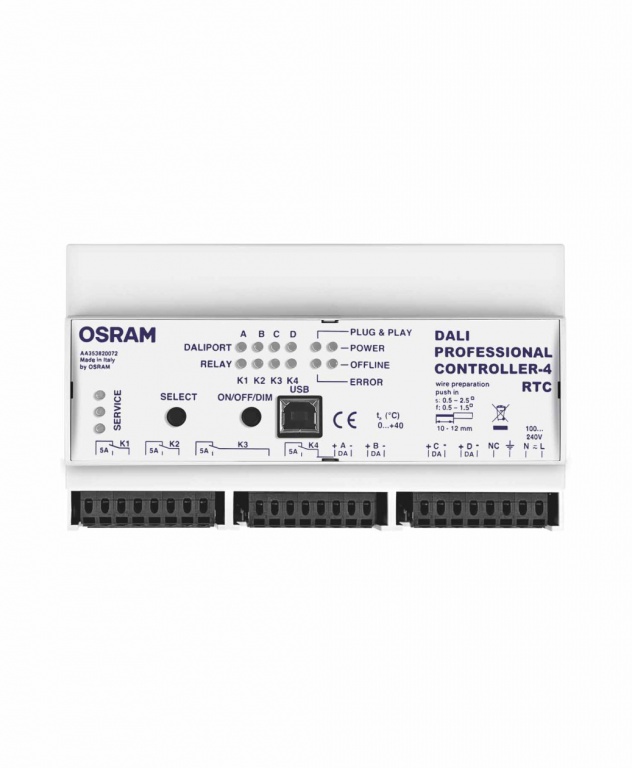

DALI PRO CONT-4 LED Drivers

Product benefits

• Plug&Play preconfigured for instant use without any startup procedure
• Mains voltage interruption buffer battery
• All the luminaires in the system can be dimmed or switched
• Simple creation of scenes and sequences
• Switching and dimming of up to 256 DALI ECGs
• A setpoint for daylight-dependent control can be stored by double clicking
• Sensor integration in DALI

Areas of application

• Room control, floor control, daylight-dependent control
•  Connection of light and presence sensors in DALI systems
• Conference rooms
• Offices: Individual and group workplaces
• Production and assembly facilities
• Suitable for indoor applications
• Large luminaire groups
• Industry

Product features

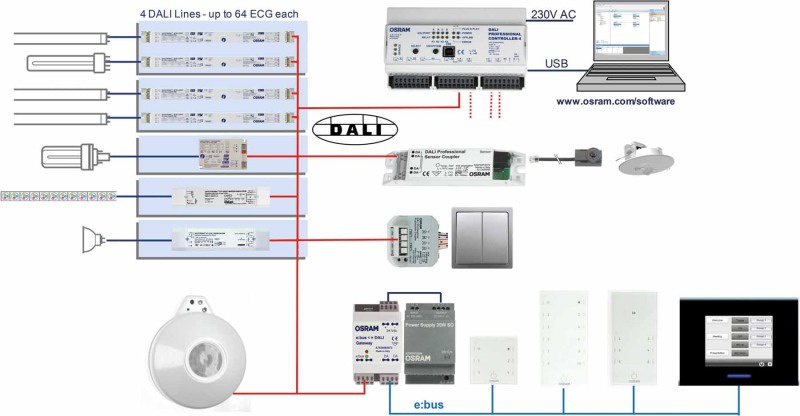

• Controller for 4 DALI lines
• Up to 50 pushbutton/sensor couplers can be integrated
• Integrated DALI supply
• 4 freely programmable switchover relays; load contact: 4x 5 A

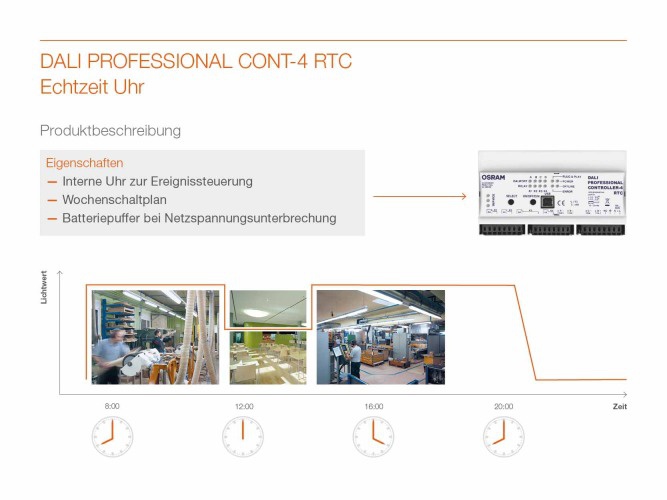

• Daylight-dependent and/or presence-dependent or manual control
• Up to 4 x 16 groups can be controlled
• USB PC connection
• Integrated clock for event control
• Weekly scheduler
• Connection via screwless push wire terminals
• Control of lighting scenes and sequences (recall/store)
• 4 DALI lines

Equipment / Accessories

• Suitable for up to 256 electronic control gears with DALI interfaces
• Graphic configuration software with Windows user interface
