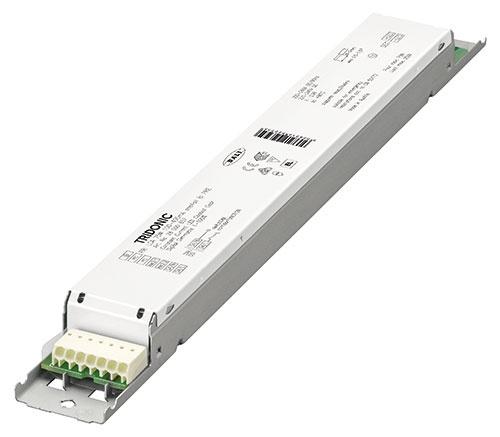

TALEXXdriver LCA 50W 350-1050mA one4all lp PRE LED Drivers

Pack­ag­ing, carton	10 pc(s).
Pack­ag­ing, pallet	760 pc(s).
Weight per pc.	0.244 kg
Min. forward voltage	20 V
Output current	1,050 mA
Max. for­ward volt­age	48 V
Max. output power	50.0 W
Typ. power con­sump­tion (at 230 V, 50 Hz, full load)	56.0 W
Ambient temperature ta	-25 ... +65 °C
Typ. current consumption (at 230 V, 50 Hz, full load)	248 mA
tc point max.	80 °C
I-select 2 resistor value	0.00 kΩ
Tridonic - parametry
	110
	CE
	EAC
	EL
	ENEC
	IP20
	RCM
	RoHs
	SELV
	Short Circuit Proof
	r2m
AC voltage range	198 – 264 V
Rated supply voltage	220 – 240 V
DC voltage range	176 – 280 V
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 48 h
Leakage current (at 230 V, 50 Hz, full load)(1)(2)	< 440 µA
Max. input power	56.5 W
Typ. efficiency (at 230 V, 50 Hz, full load)(2)	91 %
Typ. input current in no-load operation	33 mA
Typ. input power in no-load operation	0.42 W
In-rush current (peak / duration)	26.5 A / 180 µs
THD (at 230 V, 50 Hz, full load)(1)	< 6.1 %
Time to light (DC mode)	< 0.3 s
Time to light (at 230 V, 50 Hz, full load)(1)	< 0.6 s
Switchover time (AC/DC)	< 0.2 s
Turn off time (at 230 V, 50 Hz, full load)	< 20 ms
Max. output current peak (non-repetitive)	≤ output current + 40 %
Output current tolerance(1)	± 3 %
Max. output voltage (no-load voltage)	60 V
Output LF current ripple (< 120 Hz)	± 5 %
Mains surge capability (between L - N)	1 kV
Mains surge capability (between L/N - PE)	2 kV

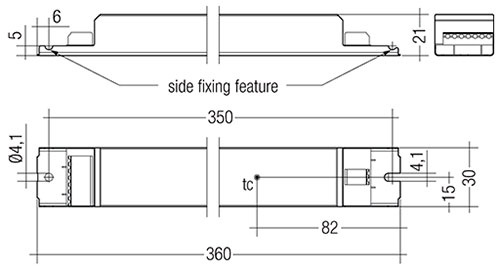

Dimensions L x W x H	360 x 30 x 21 mm
λ (at 230 V, 50 Hz, full load)(1)	0.98
Typ. current (at 230 V, 50 Hz, full load)(1)(2)	102 – 248 mA
Typ. current (220 V, 0 Hz, full load, 15 % dimming level)(2)	71.5 mA
Typ. power input on stand-by(3)	< 0.15 W
Dimming range	1 – 100 %
Surge voltage at output side (against PE)	< 500 V

• Dimmable built-in constant current LED Driver
• Output current adjustable between 350 – 1,050 mA via ready2mains™ Programmer, I-select 2 plugs or DALI
• Max. output power 50 W
• Up to 91 % efficiency
• Power input on stand-by < 0.15 W
• Dimming range 1 to 100 %
• Nominal life-time up to 100,000 h
• 5-year guarantee

Housing properties

• Low profile metal casing with white cover
• Type of protection IP20

Interfaces

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains™ (configuration and dimming via mains)
• Terminal blocks: 0° push terminals

Functions

• Adjustable output current (DALI, ready2mains™, I-select 2)
• Constant light output function (CLO)
• Power-up fading at AC
• Configurable via ready2mains™
• Service monitor to log certain events
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

• Application-oriented operating window for maximum compatibility
• Best energy savings due to low stand-by losses and high efficiency
• Flexible configuration via DALI, ready2mains™ and I-select 2
• Reliability proven by life-time up to 100,000 h and 5-year guarantee

Typical applications

• For linear/area lighting in office applications
