| Weight per pc. | 0.46 kg |
| Packaging, carton | 1 pc(s). |
| Inputs | 1 |
| Output, relay | 4 (make contact) |
Tridonic - parametry |
|
|
CE |
|
|
DALI |
|
|
EAC |
|
|
RCM |
|
|
RoHs |
| Rated supply voltage | 230 – 240 V |
| Mains frequency | 50 / 60 Hz |
| Ambient temperature ta | 0 ... +50 °C |
| Storage temperature ts | -20 ... +70 °C |
| Type of protection | IP20 |
| Power | < 2 W |
| Humidity(1) | 5 % ... max. 85 % |
Tridonic https://www.gitlighting.com/uploads/producer_logos/2b32735dd615fc5c2cbc82f4828fe1b3.png

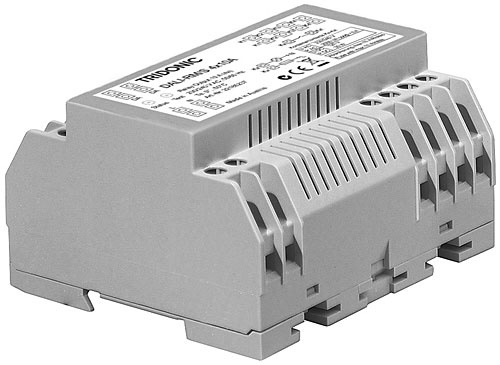

DALI-RM/S 4x10 A 72803 72803 72803
