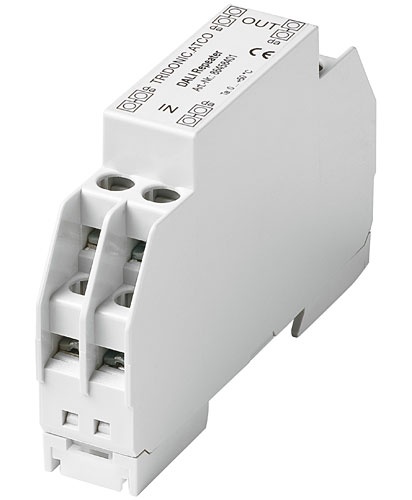

DALI repeater LED Power Supplies

Packaging, carton	1 pc(s).
Tridonic - parametry
	CE
	DALI
	RoHs
Storage temperature ts	-20 ... +70 °C
Type of protection	IP20
Supply via	DALI cable
Operating temperature	0 ... +50 °C
Input	DALI
Output	DALI
Current draw for main control circuit (IN)	6 mA from DALI
Current draw for subordinate control circuit (OUT)	4 mA from DALI

• For amplifying the DALI signal
• For extending the DALI line length from 300 to 600 m
• A star-type network with multiple DALI repeater's can be set up
• Power supply via DALI line
• For installation in switching cabinets
• 5-year guarantee

Note

• Because of the signal delay it is not possible to connect multiple DALI repeaters in series (no cascading)
• There is no increase in the maximum number of DALI units. A maximum of 64 DALI addresses can be configured in a DALI circuit (main and subordinate circuit)
• Because of the electrical isolation between the main circuit and the subordinate circuit an additional DALI power supply unit is needed for each DALI repeater
