| Power factor λ | 0.80 |

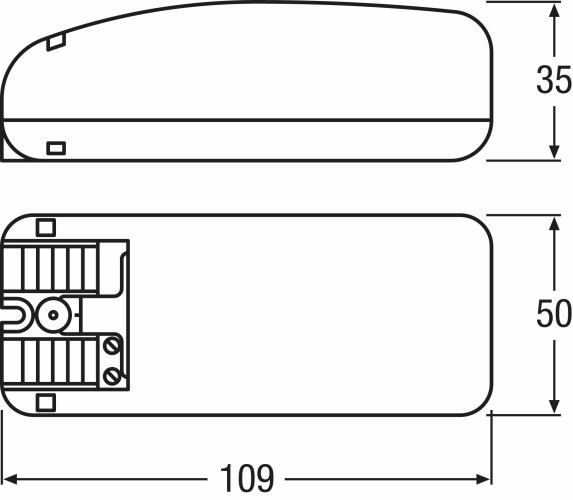

| Length | 109.0 mm |
| Nominal output power | 20 W |
| Input voltage AC | 198 254 V |
| Device power loss | 4.0 W |
| ECG efficiency | 83 % |
| Nominal current | 0.35 A |
| Inrush current | 10 A |
| Max. no. of ECGs on circuit breaker 10 A | 42 |
| Galvanic isolation primary/secondary | 3 kV |
| Max. no. of ECGs on circuit breaker 16 A | 68 |
| Surge capability (L-N) | 1 kV |
| Width | 50.0 mm |
| Height | 35.0 mm |
| Cable cross-section, input side | 0.75 1.5 mm² |
| Product weight | 108.00 g |
| Cable cross-section, output side | 0.5 1.5 mm² |
| Casing material | Plastic |
| Wire preparation length, input side | 10 mm |
| Ambient temperature range | -20 +45 °C |
| Maximum temperature at tc test point | 70 °C |
| ECG lifetime | 30000 h |
| Max.housing temperature in case of fault | 90 °C |
| Suitable for fixtures with prot. class | II |
| Approval marks approval | CE / ENEC 10 / VDE / VDE-EMC / GOST / C-Tick |
| Standards | Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to EN 55015/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 |
| Type of protection | IP20 |
Electrical data |
|
| Nominal voltage | 220 240 V |
| Mains frequency | 50 60 Hz |
| Nominal output voltage | 24 V |
Capabilities |
|
| Dimmable | Yes |
| Overheating protection | Automatic reversible |
| Max. cable length to lamp/LED module | 10 m |
| No-load proof | Yes |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
Temperatures |
|
| Temperature range at storage | -40 85 °C |
