PXF Plexiform Vega
From 160,00 zł
PXF Plexiform order value from Discount
0,00 zł -
100,00 zł 3,00 %
300,00 zł 6,00 %
700,00 zł 10,00 %
> 700,00 zł ???

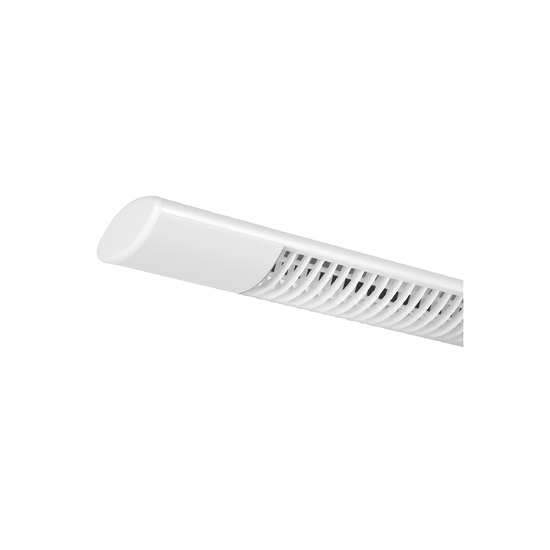

A system lighting luminaire with universal shape made of aluminum profile for T8 fluorescent tubes or LED. The luminaire offers two lighting beams: direct (DI - T8; LED) and direct-indirect (DI-IN - only T8). The wide range of accessories gives many possibilities to connect the luminaires in complexe lighting system.

Materials: powder painted aluminum profile (standard color: white), parabolic louvre PAR made of polished anodized aluminum, opal diffuser made of PMMA, lamella white or metalized louvre, LED version comes with a diffuser in a set

Installation: ceiling mounted, suspenden, wall mounted

Accessories: connector (linear, 90°, flexible, T, X, ceiling, iniversal single and double); suspensions (simple, electric)

 LWH
PX0320101 1x18W 1080 140 65
PX0320129 1x36W 1680 140 65
PX0320143 1x58W 1980 140 65
PX0320157 2x18W 1080 140 65
PX0320171 2x30W 1380 140 65
PX0320185 2x36W 1680 140 65
PX0320199 2x58W 1980 140 65
PX0340101 1x18W 1080 140 65
PX0340115 1x36W 1680 140 65
PX0340129 1x58W 1980 140 65
PX0340143 2x18W 1080 140 65
PX0340157 2x36W 1680 140 65
PX0340171 2x58W 1980 140 65

L - Length
W - Width
H - Height / Depth

PXF - Mechanical data

Type of installation Universal mounting
Housing material Aluminum

PXF - Optical data

Reflector High gloss

PXF - Electrical data

Light source T8
Type of equipment EVG
Voltage rating 230 V
Lamp holder G13

PXF - Infromations

Color White

PXF - Certificates

Degree of protection (IP) IP20
Class of protection I
Energy class A
CE Yes
Light source protection Yes
Full description

Select your product from the 13

 Vega 1x18W DI
Vega 1x18W DI
Gitlighting code: 63440 Producer code: PX0320101 Light source power: 1x18W Light distribution: DI Weight: 2.38 kg
160,00 zł
  pc(s)
  pc(s)
 Vega 2x18W DI
Vega 2x18W DI
Gitlighting code: 63443 Producer code: PX0320157 Light source power: 2x18W Light distribution: DI Weight: 2.86 kg
170,00 zł
  pc(s)
  pc(s)
 Vega 2x30W DI
Vega 2x30W DI
Gitlighting code: 63444 Producer code: PX0320171 Light source power: 2x30W Light distribution: DI Weight: 3.40 kg
197,93 zł
  pc(s)
  pc(s)
 Vega 1x36W DI
Vega 1x36W DI
Gitlighting code: 63441 Producer code: PX0320129 Light source power: 1x36W Light distribution: DI Weight: 3.14 kg
205,21 zł
  pc(s)
  pc(s)
 Vega 2x36W DI
Vega 2x36W DI
Gitlighting code: 63445 Producer code: PX0320185 Light source power: 2x36W Light distribution: DI Weight: 3.76 kg
212,49 zł
  pc(s)
  pc(s)
 Vega 1x18W DI/IN
Vega 1x18W DI/IN
Gitlighting code: 63447 Producer code: PX0340101 Light source power: 1x18W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 2.33 kg
222,50 zł
  pc(s)
  pc(s)
 Vega 2x18W DI/IN
Vega 2x18W DI/IN
Gitlighting code: 63450 Producer code: PX0340143 Light source power: 2x18W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 3.05 kg
223,41 zł
  pc(s)
  pc(s)
 Vega 2x58W DI
Vega 2x58W DI
Gitlighting code: 63446 Producer code: PX0320199 Light source power: 2x58W Light distribution: DI Weight: 5.08 kg
226,46 zł
  pc(s)
  pc(s)
 Vega 1x58W DI
Vega 1x58W DI
Gitlighting code: 63442 Producer code: PX0320143 Light source power: 1x58W Light distribution: DI Weight: 4.00 kg
229,78 zł
  pc(s)
  pc(s)
 Vega 1x36W DI/IN
Vega 1x36W DI/IN
Gitlighting code: 63448 Producer code: PX0340115 Light source power: 1x36W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 3.22 kg
311,68 zł
  pc(s)
  pc(s)
 Vega 2x36W DI/IN
Vega 2x36W DI/IN
Gitlighting code: 63451 Producer code: PX0340157 Light source power: 2x36W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 4.03 kg
318,05 zł
  pc(s)
  pc(s)
 Vega 1x58W DI/IN
Vega 1x58W DI/IN
Gitlighting code: 63449 Producer code: PX0340129 Light source power: 1x58W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 4.24 kg
355,36 zł
  pc(s)
  pc(s)
 Vega 2x58W DI/IN
Vega 2x58W DI/IN
Gitlighting code: 63452 Producer code: PX0340171 Light source power: 2x58W Louver/shutter: Transparent plastic Light distribution: DI/IN Weight: 5.03 kg
360,82 zł
  pc(s)
  pc(s)

Warranty

The warranty period on luminaire is 1 year, 2 years or 3 years depending on the product group (details in attachements)

The realization: repair or replacement of the product with a new one, free from defects

Consideration of complaints applications within 14 days.

Used marks:

SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM -  microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
