PXF Plexiform Sun LED
From 298,03 zł
PXF Plexiform order value from Discount
0,00 zł -
100,00 zł 3,00 %
300,00 zł 6,00 %
700,00 zł 10,00 %
> 700,00 zł ???

Modern luminaire designed for LED light sources of high lighting efficiency. SUN LED has an aesthetic appeal, it’s light and quick in installation. It also connect high lighting performance with low level of Unified Glare Rating (UGR). SUN LED has been equipped with a power supply with power factor cos ϕ > 0,95. DALI ballast – on request. Product is designed for offices, conference rooms and passageways.

Materials: Housing made of steel, electrostatically painted in white (standard color) with all other RAL colors available. Microprismatic diffuser (MPRM).

Installation: In the modular ceiling with visible grid, or into plaster-cardboard ceiling, suspended, surface mounted

Accessories: Plaster-cardboard frame to 600x600 version

Power: 230 V

 LWH
PX2065557 18W 596 596 47
PX2065564 18W 596 596 47
PX2065571 36W 1196 296 47
PX2065578 36W 1196 296 47
PX2065585 18W 596 596 47
PX2065592 18W 596 596 47
PX2065599 36W 1196 296 47
PX2065606 36W 1196 296 47
PX2065501 22W 596 596 47
PX2065508 22W 596 596 47
PX2065515 44W 1196 296 47
PX2065522 44W 1196 296 47
PX2065529 22W 596 596 47
PX2065536 22W 596 596 47
PX2065543 44W 1196 296 47
PX2065550 44W 1196 296 47

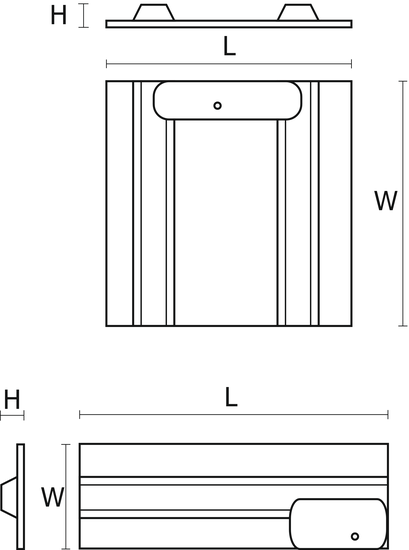

L - Length
W - Width
H - Height / Depth

PXF - Mechanical data

Housing material Steel sheet

PXF - Optical data

Reflector High gloss
Diffuser color None
Louver/shutter MPRM
Diffuser material Prismatic plastic

PXF - Electrical data

Light source LED
Type of equipment AC
Voltage rating 230 V
Light source included Yes
Type of LED LG6030
Power factor 0.97
SELV Yes

PXF - Infromations

Color White
Operating temperature range 0 ... 40 °
Dimmable Yes

PXF - Light data

Light color White
Color rendering index 80
Light distribution DI

PXF - Certificates

Degree of protection (IP) IP44
Class of protection I
Energy class A+
CE Yes
Light source protection Yes
For ceiling installation, fire class "F" (L) Yes
Full description

Select your product from the 8

 Sun LED 44W 3000K 600x600
Sun LED 44W 3000K 600x600
Gitlighting code: 62637 Producer code: PX2065501 Light source power: 2x22W Info: 600x600 Luminarie luminous efficacy: 94 lm/W Luminarie luminous flux: 4125 lm Color temperature: 3000K Weight: 4.30 kg Type of installation: For 600x600 ceiling
298,03 zł
  pc(s)
  pc(s)
 Sun LED 44W 4000K 600x600
Sun LED 44W 4000K 600x600
Gitlighting code: 62638 Producer code: PX2065508 Light source power: 2x22W Info: 600x600 Luminarie luminous efficacy: 96 lm/W Luminarie luminous flux: 4235 lm Color temperature: 4000K Weight: 4.30 kg Type of installation: For 600x600 ceiling
298,03 zł
  pc(s)
  pc(s)
 Sun LED 44W 3000K 1196x296
Sun LED 44W 3000K 1196x296
Gitlighting code: 62639 Producer code: PX2065515 Light source power: 1x44W Info: 1196x296 Luminarie luminous efficacy: 94 lm/W Luminarie luminous flux: 4125 lm Color temperature: 3000K Weight: 4.40 kg Type of installation: For 600x600 ceiling
304,40 zł
  pc(s)
  pc(s)
 Sun LED 44W 4000K 1196x296
Sun LED 44W 4000K 1196x296
Gitlighting code: 62640 Producer code: PX2065522 Light source power: 1x44W Info: 1196x296 Luminarie luminous efficacy: 96 lm/W Luminarie luminous flux: 4235 lm Color temperature: 4000K Weight: 4.40 kg Type of installation: For 600x600 ceiling
304,40 zł
  pc(s)
  pc(s)
 Sun LED 44W 3000K Suspended 600x600
Sun LED 44W 3000K Suspended 600x600
Gitlighting code: 62641 Producer code: PX2065529 Light source power: 2x22W Info: Suspended 600x600 Luminarie luminous efficacy: 94 lm/W Luminarie luminous flux: 4125 lm Color temperature: 3000K Weight: 4.30 kg Type of installation: Suspended
332,61 zł
  pc(s)
  pc(s)
 Sun LED 44W 4000K Suspended 600x600
Sun LED 44W 4000K Suspended 600x600
Gitlighting code: 62642 Producer code: PX2065536 Light source power: 2x22W Info: Suspended 600x600 Luminarie luminous efficacy: 96 lm/W Luminarie luminous flux: 4235 lm Color temperature: 4000K Weight: 4.30 kg Type of installation: Suspended
332,61 zł
  pc(s)
  pc(s)
 Sun LED 44W 3000K Suspended 1196x296
Sun LED 44W 3000K Suspended 1196x296
Gitlighting code: 62643 Producer code: PX2065543 Light source power: 1x44W Info: Suspended 1196x296 Luminarie luminous efficacy: 94 lm/W Luminarie luminous flux: 4125 lm Color temperature: 3000K Weight: 4.40 kg Type of installation: Suspended
348,99 zł
  pc(s)
  pc(s)
 Sun LED 44W 4000K Suspended 1196x296
Sun LED 44W 4000K Suspended 1196x296
Gitlighting code: 62644 Producer code: PX2065550 Light source power: 1x44W Info: Suspended 1196x296 Luminarie luminous efficacy: 96 lm/W Luminarie luminous flux: 4235 lm Color temperature: 4000K Weight: 4.40 kg Type of installation: Suspended
348,99 zł
  pc(s)
  pc(s)

Warranty

The warranty period on luminaire is 1 year, 2 years or 3 years depending on the product group (details in attachements)

The realization: repair or replacement of the product with a new one, free from defects

Consideration of complaints applications within 14 days.

Used marks:

SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM -  microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
