Luminaire MODENA MINI LED

PXF Plexiform
PXF Plexiform MODENA MINI LED
From 146,97 zł
PXF Plexiform order value from Discount
0,00 zł -
100,00 zł 3,00 %
300,00 zł 6,00 %
700,00 zł 10,00 %
> 700,00 zł ???

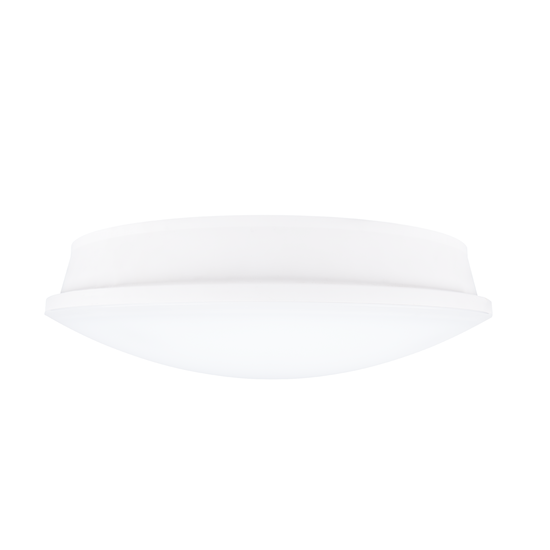

Modern plafond Modena Mini is an extension of Modena family of luminaires. Highly aesthetic and characteristic for great parameters: resistance to external conditions and UV rays with IP54 degree of protection. Available with AW 3H emergency module. Possibility of application of motion sensor or day light sensor.

Materials: white version: base and diffuser made of white UV proof polycarbonate, grey version: grey base and white diffuser made of UV proof polycarbonate

Installation: ceiling mounted, wall mounted

Power: 230 V

HF
90 315

H - Height / Depth
F - Outer diameter

PXF - Mechanical data

Type of installation Surface mounted
Housing material Policarbonate

PXF - Optical data

Diffuser color White
Louver/shutter OPAL
Diffuser material Opal/mat plastic

PXF - Electrical data

Light source LED
Number of light sources 1
Type of equipment AC
Voltage rating 230 V
Light source included Yes
Type of LED LG6030
SELV Yes
Igniter/starter Not required

PXF - Light data

Light color White
Class of luminarie I
Light distribution DI

PXF - Certificates

Degree of protection (IP) IP54
Class of protection I
Energy class A+
CE Yes
Light source protection Yes
Impact resistance IK10
Full description

Select your product from the 12

 Modena Mini LED 10W 3000K White
Modena Mini LED 10W 3000K White
Gitlighting code: 62777 Producer code: PX3004060 Light source power: 1x10W Luminarie luminous efficacy: 48 lm/W Luminarie luminous flux: 483 lm Color temperature: 3000K Weight: 2.00 kg Color: White
146,97 zł
  pc(s)
  pc(s)
 Modena Mini LED 10W 4000K White
Modena Mini LED 10W 4000K White
Gitlighting code: 62778 Producer code: PX3004063 Light source power: 1x10W Luminarie luminous efficacy: 53 lm/W Luminarie luminous flux: 533 lm Color temperature: 4000K Weight: 2.00 kg Color: White
146,97 zł
  pc(s)
  pc(s)
 Modena Mini LED 10W 3000K Grey
Modena Mini LED 10W 3000K Grey
Gitlighting code: 62779 Producer code: PX3005160 Light source power: 1x10W Luminarie luminous efficacy: 48 lm/W Luminarie luminous flux: 483 lm Color temperature: 3000K Weight: 2.00 kg Color: Grey
156,98 zł
  pc(s)
  pc(s)
 Modena Mini LED 10W 4000K Grey
Modena Mini LED 10W 4000K Grey
Gitlighting code: 62780 Producer code: PX3005163 Light source power: 1x10W Luminarie luminous efficacy: 53 lm/W Luminarie luminous flux: 533 lm Color temperature: 4000K Weight: 2.00 kg Color: Grey
156,98 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 3000K White
Modena Mini LED 20W 3000K White
Gitlighting code: 62769 Producer code: PX3004064 Light source power: 1x20W Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 1.30 kg Color: White
209,76 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 4000K White
Modena Mini LED 20W 4000K White
Gitlighting code: 62770 Producer code: PX3004071 Light source power: 1x20W Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 1.30 kg Color: White
209,76 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 3000K Grey
Modena Mini LED 20W 3000K Grey
Gitlighting code: 62773 Producer code: PX3005164 Light source power: 1x20W Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 1.30 kg Color: Grey
223,41 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 4000K Grey
Modena Mini LED 20W 4000K Grey
Gitlighting code: 62774 Producer code: PX3005171 Light source power: 1x20W Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 1.30 kg Color: Grey
223,41 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 3000K White AW 3H
Modena Mini LED 20W 3000K White AW 3H
Gitlighting code: 62771 Producer code: PX3004078 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 2.00 kg Color: White
564,66 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 4000K White AW 3H
Modena Mini LED 20W 4000K White AW 3H
Gitlighting code: 62772 Producer code: PX3004085 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 2.00 kg Color: White
564,66 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 3000K Grey AW 3H
Modena Mini LED 20W 3000K Grey AW 3H
Gitlighting code: 62775 Producer code: PX3005178 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 62 lm/W Luminarie luminous flux: 1237 lm Color temperature: 3000K Weight: 2.00 kg Color: Grey
566,48 zł
  pc(s)
  pc(s)
 Modena Mini LED 20W 4000K Grey AW 3H
Modena Mini LED 20W 4000K Grey AW 3H
Gitlighting code: 62776 Producer code: PX3005185 Light source power: 1x20W Info: AW 3H Luminarie luminous efficacy: 64 lm/W Luminarie luminous flux: 1275 lm Color temperature: 4000K Weight: 2.00 kg Color: Grey
566,48 zł
  pc(s)
  pc(s)

Warranty

The warranty period on luminaire is 1 year, 2 years or 3 years depending on the product group (details in attachements)

The realization: repair or replacement of the product with a new one, free from defects

Consideration of complaints applications within 14 days.

Used marks:

SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM -  microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
