PXF - Mechanical data |
|
| Type of installation | For 600x600 ceiling |
| Housing material | Aluminum |
PXF - Optical data |
|
| Reflector | High gloss |
| Diffuser color | None |
| Louver/shutter | Transparent plastic |
| Diffuser material | Transparent glass |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | VERO13 |
| Power factor | 0.96 |
| SELV | Yes |
| Light source power | 13W |
| Luminarie power | 13 W |
PXF - Infromations |
|
| Color | White |
| Control | Bez |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
| Luminarie luminous efficiency | 100 % |
PXF - Certificates |
|
| Degree of protection (IP) | IP44 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| For ceiling installation, fire class "F" (L) | Yes |

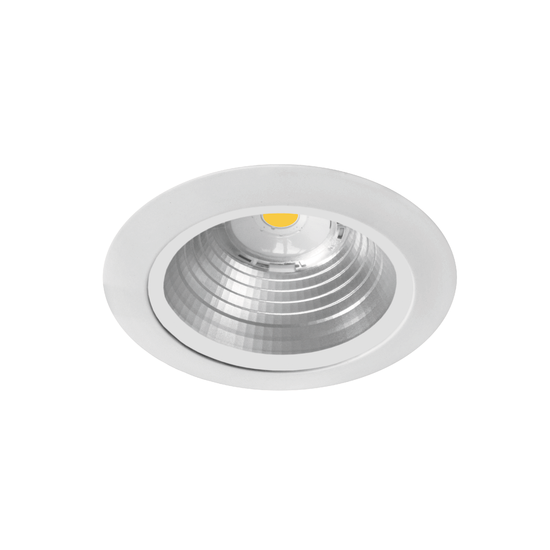

Modern and universal downlight luminarie of high lighting parameters, based on LED module. Applications: offices, restaurants, hotels, corridors, galleries etc.
Materials: powder painted aluminum ring (standard color: white), housing made of steel sheets, transparent tempered glass, reflector made of 99,85% pure aluminum
Installation: for cardboard ceiling
Power: 230 V

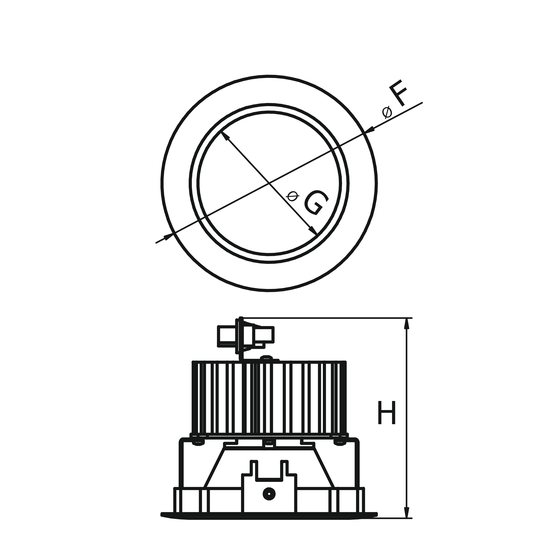

| H | F | G |
|---|---|---|
| 110 | 120 | 110 |
H - Height / Depth
F - Outer diameter
G - Inner diameter
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
