TBS165 - 4 pcs - TL5 - 14 W - HF Standard - High-gloss optic double parabolic closed
Score
rate product
| Full product code | 910503651818 |
| Full product name | TBS165 G 4xTL5-14W/840 HFS C6 PIP SC |
| Order code | 910503651818 |
| Order product name | TBS165 G 4xTL5-14W/840 HFS C6 PIP SC |
| Pieces per pack | 0 |
| Bar code on outerbox - EAN3 | 8717943888023 |
| Packs per outerbox | 1 |
| Logistic code(s) - 12NC | 910503651818 |
| Net weight per piece | 3.090 kg |
| Product family code | TBS165 [TBS165] |
| Number of light sources | 4 [4 pcs] |
| Kombipack | K [Lamp(s) included] |
| Lamp family code | TL5 [TL5] |
| Lamp power | 14 W [14 W] |
| Light source color | 840 [840 neutral white] |
| Gear | HFS [HF Standard] |
| Optic type | C6 [High-gloss optic double parabolic closed] |
| Ingress protection code | IP20 [Finger-protected] |
| Input voltage | 220-240 V [220 to 240 V] |
| Protection class IEC | CLI [Safety class I] |
| Mech. impact protection code | IK02 [0.2 J standard] |
| CE mark | CE [CE mark] |
| Flammability mark | F [For mounting on normally flammable surfaces] |
| Glow-wire test | 850/5 [Temperature 850 °C, duration 5 s] |
| Connection | PIP [Push-in connector and pull relief] |
| Country version | No |
| Safety device | SC [Safety cable] |
| Duplication code | G [Purchase Supply Group] |

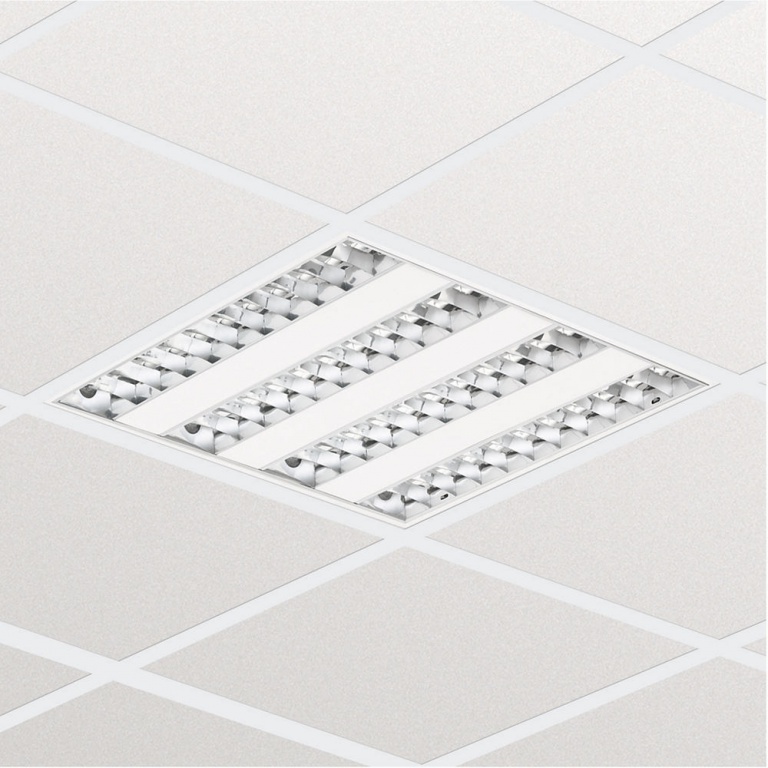

Designed to address the need for energy-efficient basic lighting, the TBS165 luminaire makes it possible to save energy by replacing outdated electromagnetic installations with Philips TL5 technology. Featuring innovative dedicated TL5 optics, a choice of ballasts, sensors (presence detection, daylight regulation) and emergency lighting, the TBS165 range can be used for general lighting in a wide variety of applications, including offices, corridors, schools and shops (supermarkets, DIY). Combining high-frequency gear, sensors and MASTER TL5 lamps, it allows substantial energy savings. The low-height recessed luminaire fits in exposed ceilings. Conveniently, it does not have to be opened, as it has pre-installed lamps and can be connected from the outside.
Features
| Dedicated TL5 luminaire |
| High-gloss as well as matt optics |
| Compliant with office lighting norm |
Applications
| Offices |
| Schools |
| Shops (supermarkets, DIY stores) |
