Y-CONNECTOR Switchgears

Product code: 57065 | Osram code: 4050300803135
Price € 43,00 incl. VAT
€ 43,00 ex. VAT
pc(s)
pc(s)
Ask for product Description / FAQ / Warranty

Score

* * * * *

rate product

1 variant available

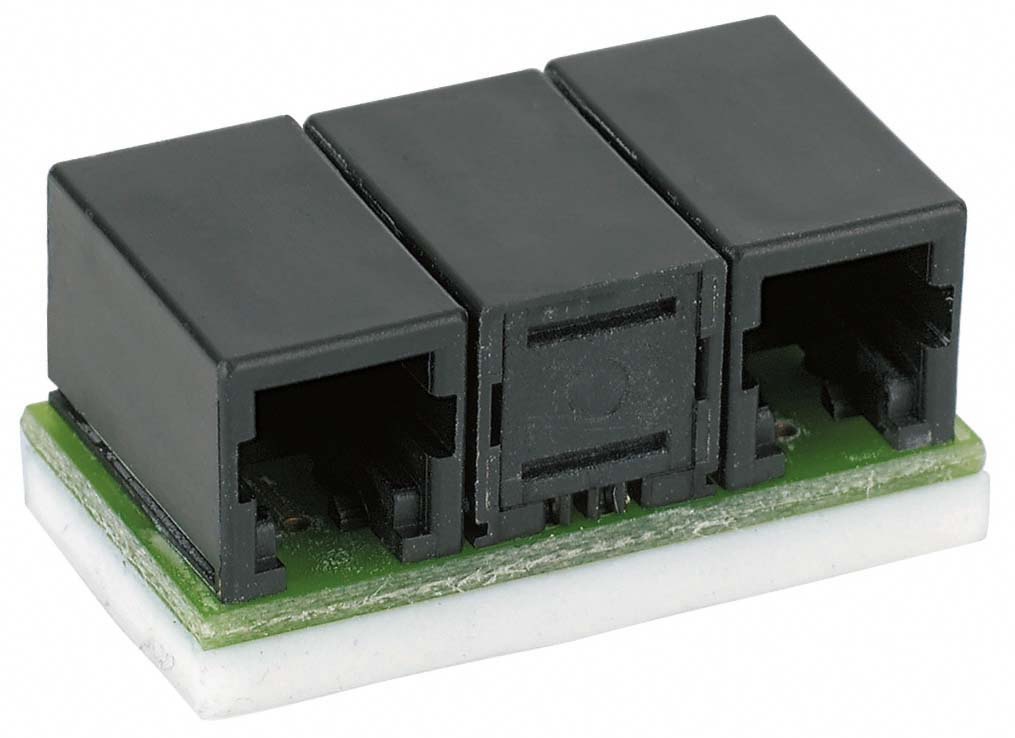

Y-CONNECTOR
Y-CONNECTOR
Karta produktu PDF
Product code: 57065 | Osram code: 4050300803135
€ 43,00 € 43,00 ex. VAT
pc(s)
pc(s)

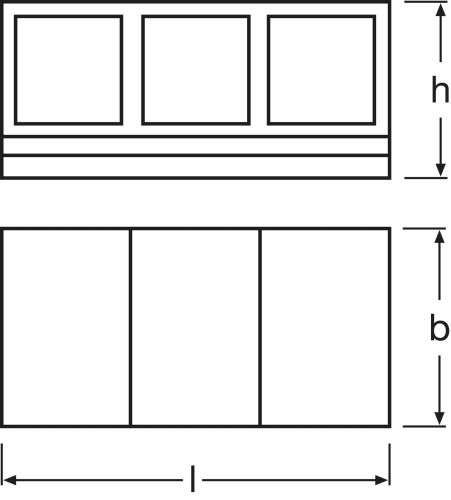

Dimensions & weight
Length 34.0 mm
Width 18.0 mm
Height 16.0 mm
Product weight 80.00 g

Certificates & standards
Type of protection IP20

Product benefits
  • For parallel connection of sensors to a MULTIeco, MULTI 3, DALIeco system
  • Enables synchronization and connection of multiple EASY system components
Areas of application
  • Suitable for all OSRAM components with modular 4p4c connector system
Product features
  • Passive distributor
  • Connections: 3x modular 4p4c socket
  • Type of installation: Adhesive pad mounting on smooth surfaces
Equipment / Accessories
  • 2 connecting cables included, modular 4p4c  connector on both ends, length 2.1 m
