Electrical data |
|
| Nominal voltage | 24.00 V |
| Mains frequency | 0 Hz |
| System wattage | 5.00 W |

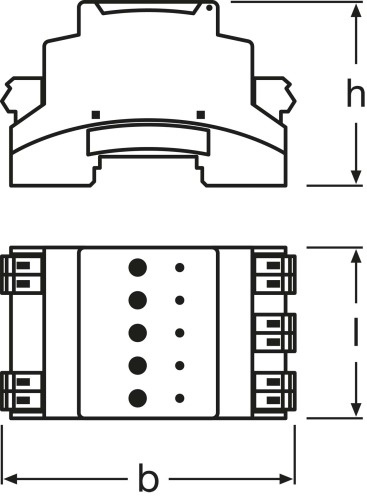

Dimensions & weight |
|
| Length | 96.0 mm |
| Width | 54.0 mm |
| Height | 62.0 mm |
| Product weight | 155.00 g |
Capabilities |
|
| Dimming interface | DALI |
| Type of installation | DIN rail mounting |
| Number of control outputs | 3 |
| Load contact | 6 A |
Certificates & standards |
|
| Type of protection | IP20 |
| Protection class | II |
Temperatures |
|
| Ambient temperature range | 0 +45 °C |
Product benefits
Areas of application
Product features
Equipment / Accessories
Osram https://www.gitlighting.com/uploads/producer_logos/d83bdb510944b8ad8743f3d191f9d801.png

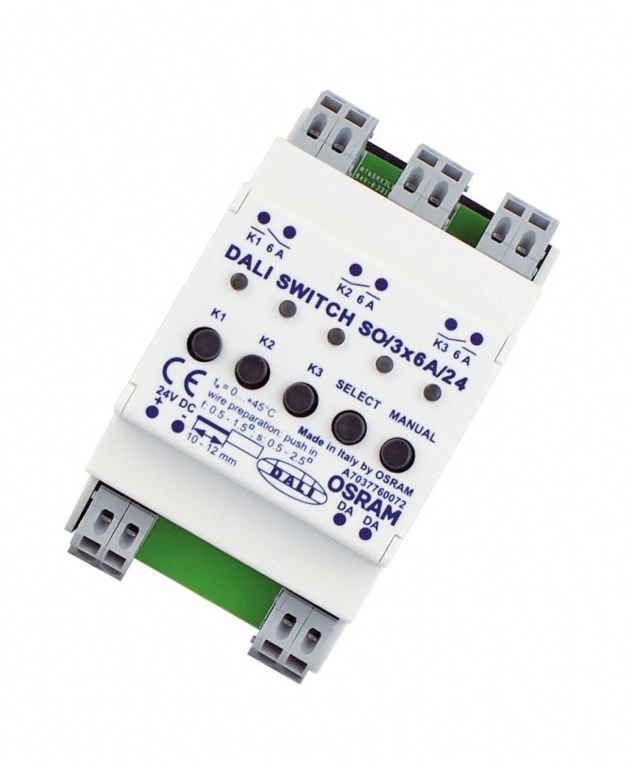

DALI Switch SO 56769 56769 56769
