DALI PRO Sensor Coupler Fluorescent Electronic Gear

Product code: 56764 | Osram code: 4008321379269

Price € 132,82 incl. VAT
€ 132,82 ex. VAT

System wattage 0.10 W
Length 118.0 mm
Width 30.0 mm
Height 21.0 mm
Product weight 35.00 g
Dimming interface DALI
Type of installation Luminaire integration/Ceiling integration
Number of control outputs 1
Type of protection IP20
Ambient temperature range 0+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

COUPLER

Karta produktu PDF

Product code: 56764 | Osram code: 4008321379269

€ 132,82 € 132,82 ex. VAT

Description / FAQ Warranty

Electrical data
System wattage	0.10 W

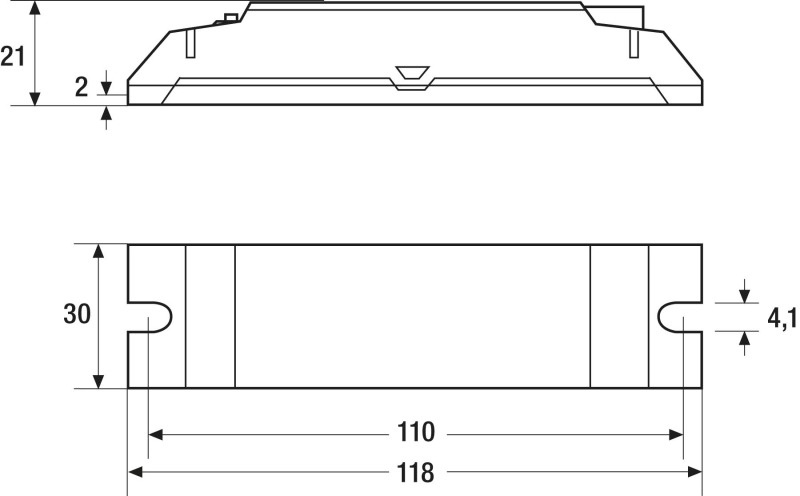

Dimensions & weight
Length	118.0 mm
Width	30.0 mm
Height	21.0 mm
Product weight	35.00 g
Capabilities
Dimming interface	DALI
Type of installation	Luminaire integration/Ceiling integration
Number of control outputs	1
Certificates & standards
Type of protection	IP20
Temperatures
Ambient temperature range	0+50 °C

Product benefits

Power supply from DALI

Areas of application

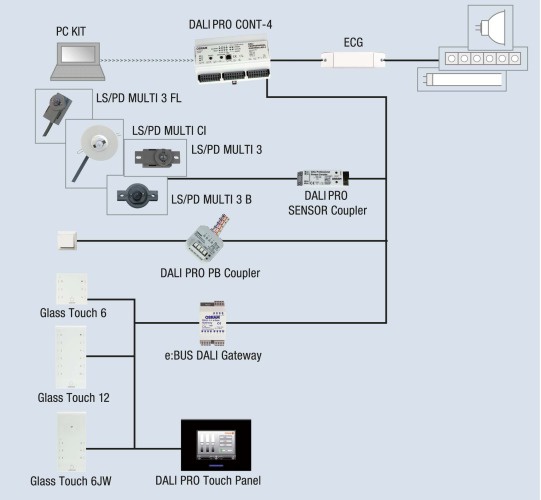

Connection of light and presence sensors in DALI systems
Ceiling or independent installation via ECO CI KIT possible

Equipment / Accessories

Suitable for all light and presence sensors from the MULTI 3 range
Can be used with DALI Professional or DALIeco light control system

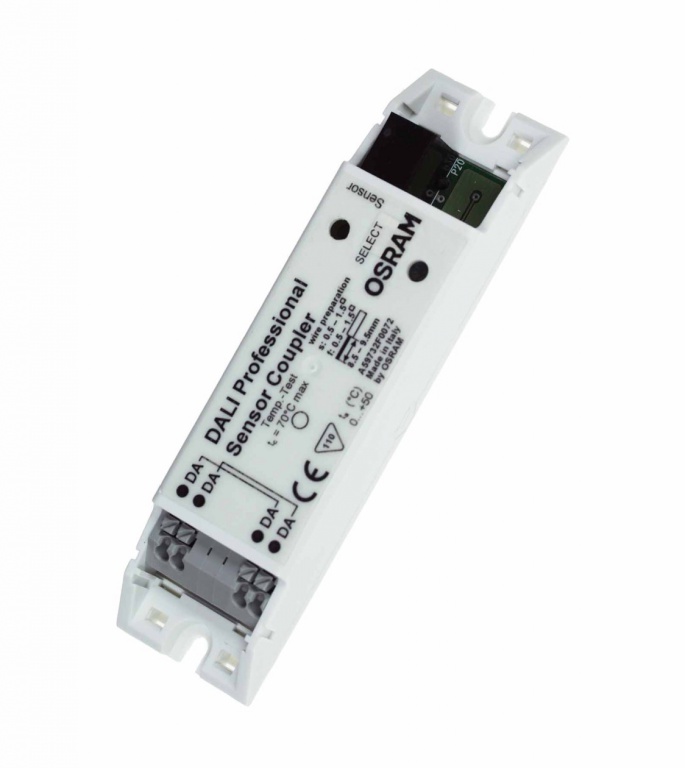

DALI PRO Sensor Coupler https://www.gitlighting.com/uploads/product_images/p-56764-115392.jpg
