DALI HIGHBAY ADAPTER Accessories, Mounting Elements

Product code: 56758 | Osram code: 4008321774132

Price € 212,24 incl. VAT
€ 212,24 ex. VAT

Nominal voltage 20.00 V
Mains frequency 0 Hz
System wattage 0.10 W
Length 139.0 mm
Width 118.0 mm
Height 37.0 mm
Product weight 74.00 g
Dimming interface DALI
Type of installation On-top ceiling mounting
Maximum installation height 13 m
Operating range, light sensor 201200 lx
Type of protection IP20
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

DALI HIGHBAY ADAPTER

Karta produktu PDF

Product code: 56758 | Osram code: 4008321774132

€ 212,24 € 212,24 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	20.00 V
Mains frequency	0 Hz
System wattage	0.10 W

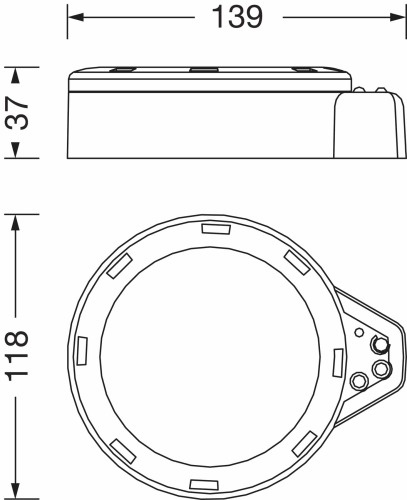

Dimensions & weight
Length	139.0 mm
Width	118.0 mm
Height	37.0 mm
Product weight	74.00 g
Capabilities
Dimming interface	DALI
Type of installation	On-top ceiling mounting
Maximum installation height	13 m
Operating range, light sensor	201200 lx
Certificates & standards
Type of protection	IP20
Colors & materials
Product color	White
Temperatures
Ambient temperature range	0+50 °C

Product benefits

Sensor integration in DALI
Embedding of HIGH BAY and VISION motion sensors into DALI
Extended terminal section enables mains looping
Daylight-dependent control with automatic shutdown in aquate daylight
DALI based light management system integrable into building management systems
Flexible addressing via DALI

Areas of application

Industry
Production halls
Sports halls
Logistic centers
Areas with high ceilings
Connection of light and presence sensors in DALI systems
Suitable for indoor installations
Production and assembly facilities

Product features

DALI adapter for HIGH BAY and VISION sensor
Direct connection to DALI
Connection via screwless push wire terminals
Light sensor working range: 20…800 lx (measured at sensor)
Integrated light sensor
Suitable for through wiring
Suitable for daylight-dependent control
Light regulation for mounting heights of up to 13 m
Power supply for coupler from DALI
Integration into BMS systems

Equipment / Accessories

Blind cover included
Can be used with DALI Professional light control system

Recommended also

DMX system elements

from 48,45 €

3 variants

Joint type 60° P

47,52 €

1 variant

Joint type I

24,57 €

1 variant

Glass centralnie matowiona IP43 (2x18W, 2x26W)

3,48 €

1 variant

Ø480 Alu corrugated with a hole in the glass

29,65 €

1 variant

Mechanical suspension with power connector

from 6,06 €

2 variants

Ø470 Alu corrugated

23,96 €

1 variant

Feed-In for 3-phase track

9,29 €

4 variants

Mounting box recessed

31,17 €

3 variants

Harness through

from 4,91 €

3 variants

Glass transparent IP43

3,48 €

1 variant

Filter for lighting stands meat

43,46 €

1 variant

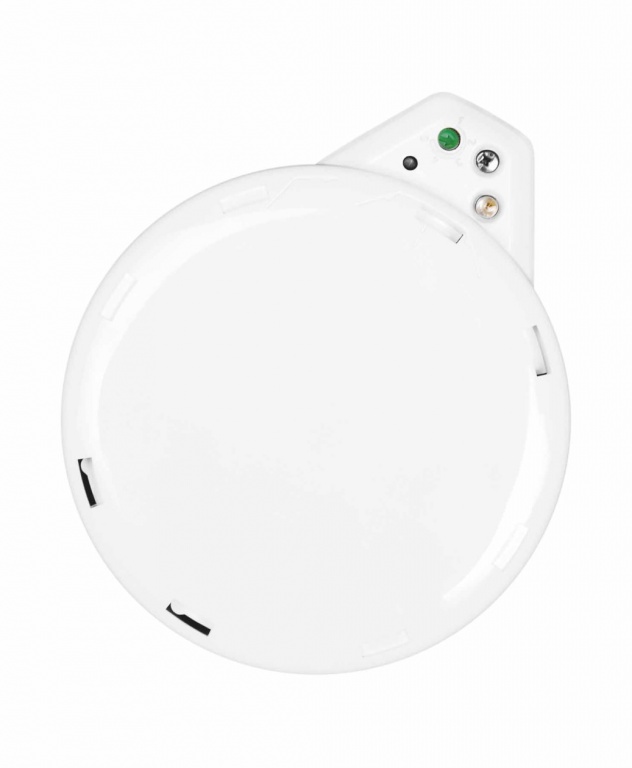

DALI HIGHBAY ADAPTER https://www.gitlighting.com/uploads/product_images/p-56758-115370.jpg
