Technical Data |
|
| Body | high pressure die-cast aluminum |
| Mounting | in the substrate |
Electrical Data |
|
| Electrical connection | 3x1 mm² wire |
| Power supply efficiency | >79% |
| Includes light source | yes |
General Data |
|
| Warranty | 3 years + 2 years after project registration |
| Application | pathways, shopping centers, parking areas, Railway stations, hotels |
Additional Info |
|
| Lifetime | 50 000 h |

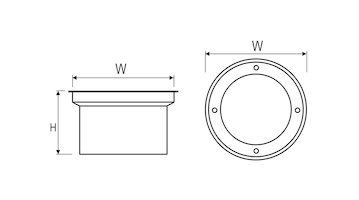

| Code | Dimensions [mm] W H | Dimensions de découpe [mm] W H | Pallet quantity | Quantity in package | Net weight[kg] |
|---|---|---|---|---|---|
| 140233.5L041.14 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L041.44 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L041.54 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L042.14 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L042.44 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L042.54 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L043.14 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L043.44 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L043.54 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L044.14 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L044.44 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L044.54 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L045.14 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L045.44 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L045.54 | 260 124 | 240 116 | 132 | 1 | 3,3 |
| 140233.5L041.34 | 260 124 | 260 - | - | - | 3,0 |
| 140233.5L041.24 | 260 124 | 260 - | - | - | 3,0 |
| 140233.5L042.34 | 260 124 | 260 - | - | - | 3,0 |
| 140233.5L045.34 | 260 124 | 260 - | - | - | 3,0 |
Oznaczenia opraw:
HF - high frequency - luminaires with electronic ballast
IN - inductive - luminaires with magnetic ballast without compensation
IC - inductive compensated - luminaires with magnetic ballast with compensation
LUG https://www.gitlighting.com/uploads/producer_logos/4bf834f6a33896cac9e9e78b9fa7daf7.jpg

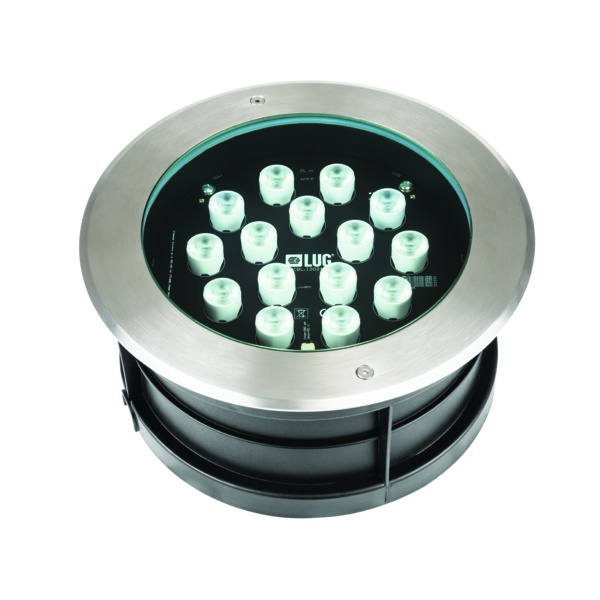

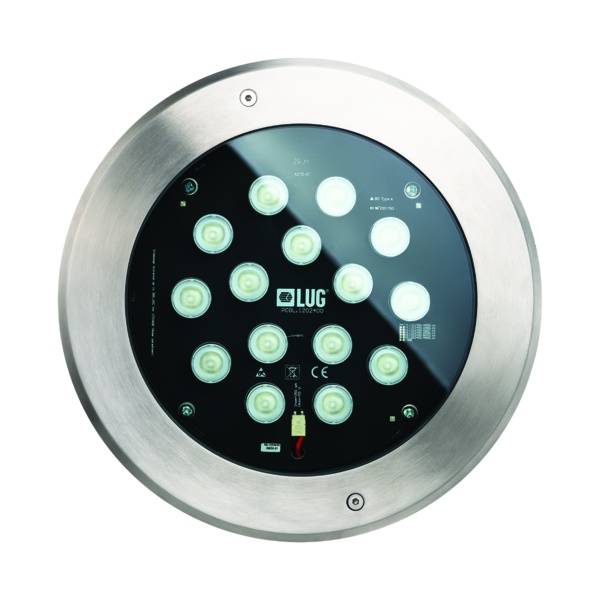

RUNA 4 LED
